SMITH
CHECK VALVE
CLASS 800

Smith Check Valve with Threaded or Socket Weld End

Smith Forged Steel Check Valve API 602

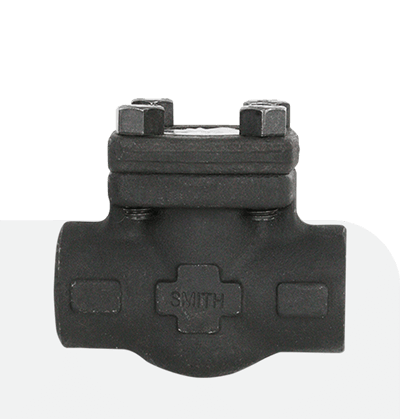

The Smith Class 800 Check Valve feature conventional ports and bolted caps with either threaded or socket weld end.

Check Valve Features

Smith Check Valve with Threaded or Socket Weld End

Smith Forged Steel Ball & Piston Check Valve

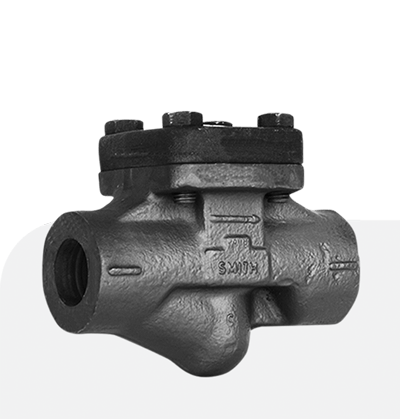

The Smith Class 1500 Check Valve feature conventional ports and bolted caps with either threaded or socket weld end.

Smith Check Valve
with Flanged End

Forged Steel, Piston Check Valves ASME B16.34

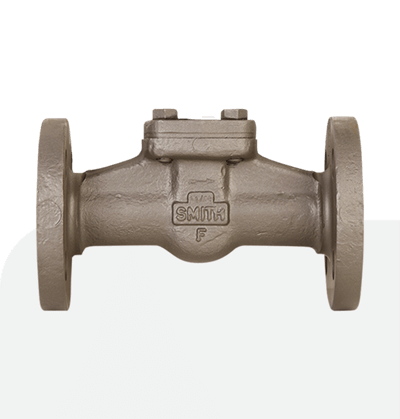

The Smith Class 300 Check Valve
feature conventional ports and
bolted caps with flanged ends.

SMITH
GATE VALVE
CLASS 800

Smith Gate Valve with Threaded or Socket Weld End

Smith Gate Valve Class 800 Full Port Bolted Bonnet

Gate Valve Features

• Low fugitive emissions
• Robust engineering design
• Flexible lip seat technology
• Fire-tested & cryogenic designs

Gate Valve Figure

• Gate Valve Bolted Bonnet Fig. 0888
• Gate Valve Bolted Bonnet Fig. 5870
• Gate Valve Bolted Bonnet Fig. 0800
• Gate Valve Bolted Bonnet Fig. 0870

Smith Conventional
Port Inside Screw Gate Valve

Smith Gate Valve
Class 800 Rising Stem

The Smith 0850 and 0890 Gate Valve feature an inside screw, are Class 800 rated, and have conventional ports with either threaded or socket weld end. The 0850 has a bolted bonnet, where as the 0890 has a welded bonnet.

SMITH
GATE VALVE
CLASS 1500

Smith Gate Valve with Threaded or Socket Weld Ends

Smith Forged Steel Gate Valve Class 1500 Reduce Port API 602 and ASME B16.34

The Smith 1500 and 1570 Gate Valve feature an outside stem and yoke (OS&Y), are Class 1500 rated, and have conventional ports with either threaded or socket weld ends. The 1500 has a bolted bonnet, where as the 1570 has a welded bonnet.

Gate Valve Features

• Very long service life
• Low fugitive emissions
• Low emissions stem seal technology

Gate Valve Figure

• Forged Steel Gate Valve Fig. 1500
• Forged Steel Gate Valve Fig. 1570

Full Port Gate Valve with Threaded or Socket Weld Ends

Smith Forged Steel Gate Valve Class 1500 Full Port

The Smith 1578 and 1588 Gate Valve feature an outside stem and yoke (OS&Y), are Class 1500 rated, and have full ports with either
threaded or socket weld ends.

Smith Conventional Port Gate Valve with Flanged Ends

Smith Forged Steel Gate Valve Comply With ASME B16.34

The Smith 0815, 0830 and 0860 Bolted Bonnet Gate Valve feature an outside stem and yoke (OS&Y), and have conventional (reduced)
ports with flanged ends.

Smith Bolted Bonnet Gate Valve with Buttweld Ends

Smith Gate Valve Class 1500

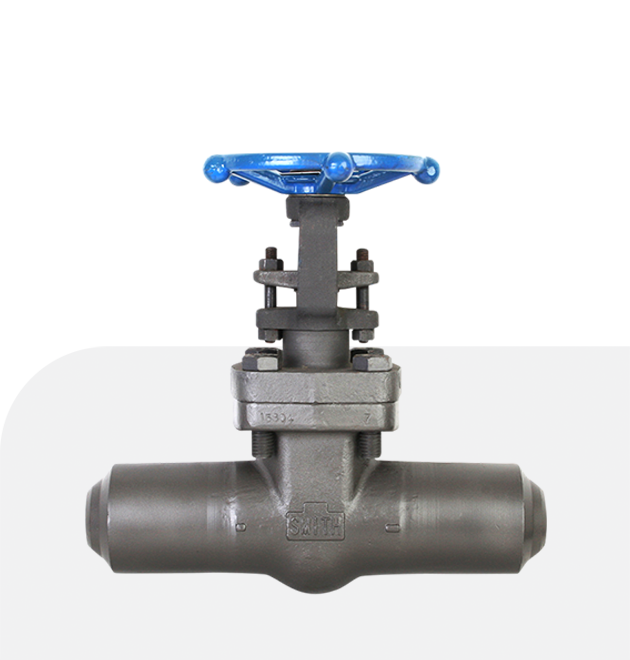

The Smith 0895B and 1500B Gate Valve feature an outside stem & yoke (OS&Y), bolted bonnet and extended body with buttweld ends. The 0895B is full port and the 1500B is
conventional port.

Smith Bellow Seal Gate Valve with Threaded or Socket
Weld Ends

Smith Gate Valve Series B870

The Smith B870 Bellow Seal Gate Valve features an outside stem and yoke (OS&Y), welded bonnet and conventional port with either threaded or socket weld ends.

SMITH
GLOBE VALVE
CLASS 800

Smith Globe Valve with Threaded or Socketweld Ends

Smith Forged Steel
Globe Valve Class 800

The Smith 0G80 and 0G87 Gate Valve feature an outside stem and yoke (OS&Y), are Class 800 rated, and have conventional ports with either threaded or socket weld ends.

Globe Valve Features

• Robust engineering design
• Flexible lip seat technology
• Low emissions stem seal technolog
• Very long service life
• Bubble tight shut off
• Low fugitive emissions

Globe Valve Features

• Forged Steel Globe Valve Fig. OG80
• Forged Steel Globe Valve Fig. OG87

Smith Bolted Bonnet Globe Valve with Flanged End

Smith Globe Valve
Class ANSI 150 – 300

The Smith bolted bonnet globe valve feature an outside stem and yoke (OS&Y), and have conventional ports with flange end.
