Steam Traps

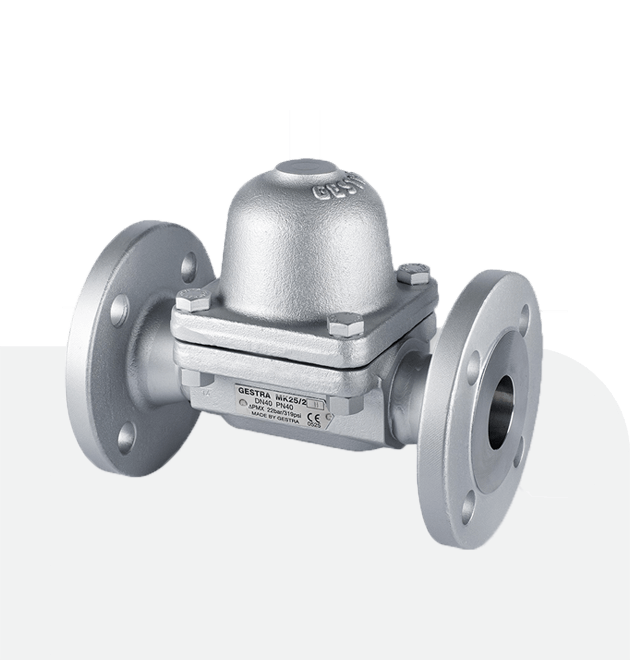

Gestra Steam Trap MK with Membrane Regulator
Thermostatic Steam Trap MK
A distinguishing feature of the gestra steam trap MK series is the outstanding responsiveness of the membrane regulator.
Gestra Steam Trap Features :
-
Thermostatic steam traps for removing condensate from steam or for venting steam pipes
Several Types of This Product :
- Gestra Steam Traps MK 20 Series
- Gestra Steam Traps MK 36/51 Series
- Gestra Steam Traps MK 45-1, MK 45-2
- Gestra Steam Traps MK 25/2, MK 25/2S
- Gestra Steam Traps MK 35/31, MK 35/32
- Gestra Steam Traps MK 45A-1, MK 45A-2
- Gestra Steam Traps MK 35/2S, MK 35/2S3
Detail Specification
| Size Range | 1/4" - 2" |
| Nominal Size | DN 8 - DN 50 |
| Pressure Nominal | PN 25 - PN 40 |
Gestra Steam Trap MK with Membrane Regulator
Thermostatic Steam Trap MK
A distinguishing feature of the gestra steam trap MK series is the outstanding responsiveness of the membrane regulator.
Gestra Steam Trap Features :
-
Thermostatic steam traps for removing condensate from steam or for venting steam pipes
Several Types of This Product :
Detail Specification
| Size Range | 1/4" - 2" |
| Nominal Size | DN 8 - DN 50 |
| Pressure Nominal | PN 25 - PN 40 |
Gestra Steam Trap for Draining Steam Systems

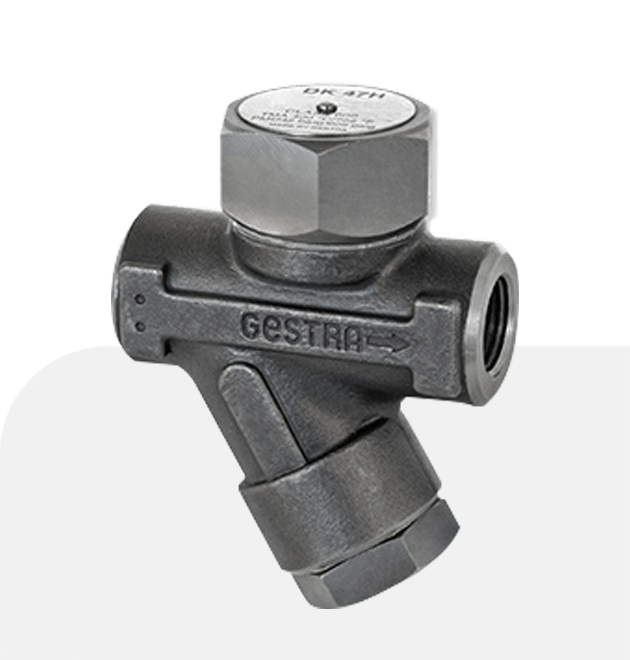

Gestra Thermodynamic Steam Trap DK Series
The DK 47 thermodynamic steam trap is made of stainless steel and has an integrated dirt strainer. It has an especially compact design with a screw-mounted hood
Several Types of This Product :
Other Gestra Steam Trap Series :
- Gestra Steam Trap SMK Series
- Gestra Steam Traps BK Series
- Gestra Steam Traps TS Series
- Gestra Steam Traps VK Series
- Gestra Steam Traps NRG Series
Detail Specification
| Nominal Size | DN 10-25 (NPS 3⁄8" – 1") |
| Pressure Rating | PN 40, PN 63/Class 600 |
| Max. Differential Pressure | 42 bar |
Gestra Steam Trap for Draining Steam Systems
Gestra Thermodynamic Steam Trap DK Series
The DK 47 thermodynamic steam trap is made of stainless steel and has an integrated dirt strainer. It has an especially compact design with a screw-mounted hood
Several Types of This Product :
Other Gestra Steam Trap Series :
Detail Specification
| Nominal Size | DN 10-25 (NPS 3⁄8" – 1") |
| Pressure Rating | PN 40, PN 63/Class 600 |
| Max. Differential Pressure | 42 bar |
Gestra Steam Trap BK with Duo Stainless Steel Regulator
Thermostatic Steam Traps with Bimetallic Regulator
In steam traps with Gestra Thermovit regulators. It is precisely this principle that makes steam traps from the BK series highly responsive.
Several Types of This Product :
- Gestra Steam Traps BK 15 Series
- Gestra Steam Traps BK 37 Series
- Gestra Steam Traps BK 28 Series
- Gestra Steam Traps BK 29 Series
- Gestra Steam Traps BK 45 Series
- Gestra Steam Traps BK 46 Series
- Gestra Steam Traps BK 212 Series
- Gestra Steam Traps BK 37-ASME Series
- Gestra Steam Traps BK 28-ASME Series
- Gestra Steam Traps BK 29-ASME Series
- Gestra Steam Traps BK 212-ASME Series
Detail Specification
| Nominal Size | DN 15 – 50 (NPS ½ ̋ – 2 ̋) |
| Nominal Pressure | PN 40 - PN 630 |
| Temperature | Up to ∆p 275 g |
| Connection | Flanged EN, Flanged ASME, Screwed Socket, Socket-Weld, Butt-weld, |
Gestra Steam Trap BK with Duo Stainless Steel Regulator
Thermostatic Steam Traps with Bimetallic Regulator
In steam traps with Gestra Thermovit regulators. It is precisely this principle that makes steam traps from the BK series highly responsive.
Several Types of This Product :
- Gestra Steam Traps BK 15 Series
- Gestra Steam Traps BK 37 Series
- Gestra Steam Traps BK 28 Series
- Gestra Steam Traps BK 29 Series
- Gestra Steam Traps BK 45 Series
- Gestra Steam Traps BK 46 Series
- Gestra Steam Traps BK 212 Series
- Gestra Steam Traps BK 37-ASME
- Gestra Steam Traps BK 28-ASME
- Gestra Steam Traps BK 29-ASME
- Gestra Steam Traps BK 212-ASME
Detail Specification
| Nominal Size | DN 15 – 50 (NPS ½ ̋ – 2 ̋) |
| Nominal Pressure | PN 40 - PN 630 |
| Temperature | Up to ∆p 275 g |
| Connection | Flanged EN, Flanged ASME, Screwed Socket, Socket-Weld, Butt-weld, |
Drainage Module QuickEM
Gestra QuickEM with UNA 16A Ball-Float Steam Trap
Gestra QuickEM are completely interconnected units for horizontal or vertical installation with or without bypass. They come with valve and steam traps, non-return valve, sight glass and shut-off valve as well as all necessary pipes, fittings, flanges, gaskets and screws
Gestra QuickEM Advantages :
- Also available without bypass
- Also available in stainless steel
Other Gestra Steam Trap Series :
- Gestra Steam Trap TS 36 Series
- Gestra Steam Trap UC 36 Series
- Gestra Steam Trap UCY 36 Series
- Gestra Steam Trap IB 16A-7 Series
- Gestra Steam Trap BK 36A-7 Series
Detail Specification
| Nominal Size | DN 15–25 (NPS ½˝–1˝) |
| Max. Differential Pressure | 22 bar |
| Body | 1.4408 /A182-316L |
| Material | 1.4404 |
| Cover | SA351-CF8M |
Drainage Module QuickEM
Gestra QuickEM with UNA 16A Ball-Float Steam Trap
Gestra QuickEM are completely interconnected units for horizontal or vertical installation with or without bypass. They come with valve and steam traps, non-return valve, sight glass and shut-off valve as well as all necessary pipes, fittings, flanges, gaskets and screws
Gestra QuickEM Advantages :
- Also available without bypass
- Also available in stainless steel
Other Gestra Steam Trap Series :
- Gestra Steam Trap TS 36 Series
- Gestra Steam Trap VK 14 Series
- Gestra Steam Trap VK 16 Series
- Gestra Steam Trap AK 45 Series
- Gestra Steam Trap TK 23 Series
- Gestra Steam Trap TK 24 Series
- Gestra Steam Trap GK 11 Series
- Gestra Steam Trap GK 21 Series
- Gestra Steam Trap UC 36 Series
- Gestra Steam Trap VKP 10 Series
- Gestra Steam Trap VKP 41 Series
- Gestra Steam Trap UCY 36 Series
- Gestra Steam Trap IB 16A-7 Series
- Gestra Steam Trap BK 36A-7 Series
Detail Specification
| Nominal Size | DN 15–25 (NPS ½˝–1˝) |
| Max. Differential Pressure | 22 bar |
| Body | 1.4408 /A182-316L |
| Material | 1.4404 |
| Cover | SA351-CF8M |

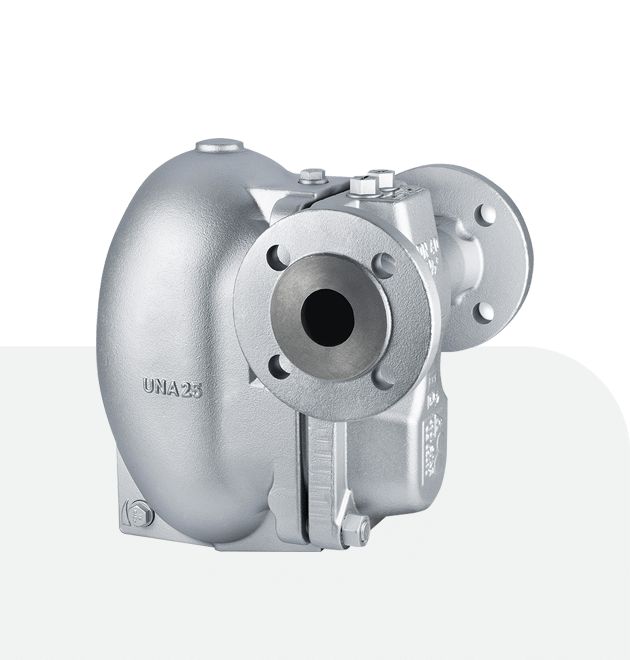

Ball Float Steam Trap UNA
Gestra Pump Steam Trap
The modular design means that the steam trap’s direction of flow can be varied. The materials and design of the forged body conform to EN and ASME standards.
Several Type of This Product :
- Gestra Pump Steam Trap UNA 25-PK
- Gestra Pump Steam Trap UNA 25-PS
- Gestra Ball Float Steam Trap UNA 45
- Gestra Ball Float Steam Trap UNA 46
- Gestra Ball Float Steam Trap UNA 46A
- Gestra Ball Float Steam Trap UNA 14
- Gestra Ball Float Steam Trap UNA 16
- Gestra Ball Float Steam Trap UNA 23
- Gestra Ball Float Steam Trap UNA 25
- Gestra Ball Float Steam Trap UNA 26
- Gestra Ball Float Steam Trap UNA 27H
- Gestra Ball Float Steam Trap UNA 14P
Detail Specification
| Size Range | 1/4" - 6" |
| Nominal Size | DN 15 - DN 150 |
| Nominal Pressure | PN 16 - PN 160 |
| Pressure Class | Class 125, Class 150, Class 300 |
| Connection | Flanged EN, Screwed Sockets, Flanged ASME, Screwed ISO-G, Screwed Socket NPT, Socket-weld, Butt-weld |
Check Valve

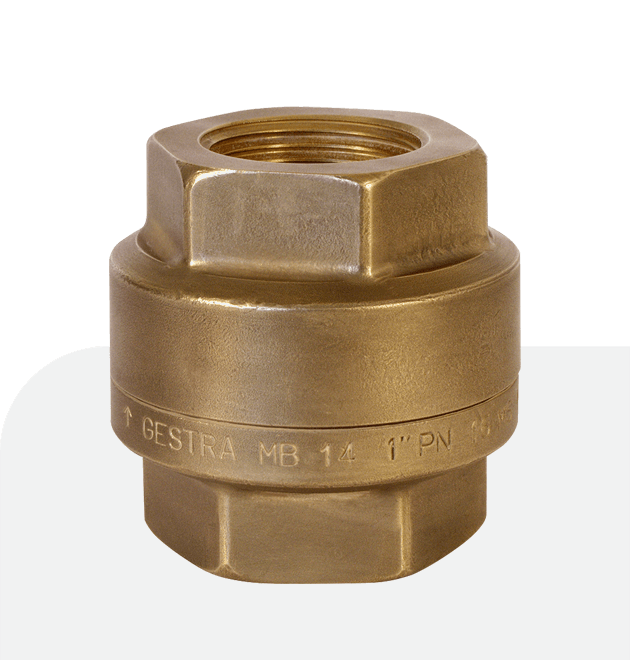

Gestra Screwed Non-Return Valve MB Type
Gestra Check Valve for Sanitation and Heating
The check valve with screwed socket connection. The closing spring means the valve can be installed in any position. It has metal-to-metal sealing and is suitable for liquid, gas.
Gestra Check Valve Features :
- Centric cone and spring guide
- Screwed socket end connection
Several Types of This Product :
Detail Specification
| Nominal Size | 15 - 50 mm |
| Body EN Reference | Brass (CW614N) |
| Valve Disk EN | 1.4571 |
| Pressure Rating | PN 16 |
| End Connection | Screwed Socket |
Gestra Screwed Non-Return Valve MB Type
Gestra Check Valve for Sanitation and Heating
The check valve with screwed socket connection. The closing spring means the valve can be installed in any position. It has metal-to-metal sealing and is suitable for liquid, gas.
Gestra Check Valve Features :
- Centric cone and spring guide
- Screwed socket end connection
Several Types of This Product :
Detail Specification
| Nominal Size | 15 - 50 mm |
| Body EN Reference | Brass (CW614N) |
| Valve Disk EN | 1.4571 |
| Pressure Rating | PN 16 |
| End Connection | Screwed Socket |
Gestra Non-Return Check Valve RK 16 Type
Gestra Check Valve for Special Applications
The RK 16 series is suitable for liquid, gas, steam and especially aggressive media. Different seal surface designs for tongue or male flanges to DIN or ASME RJ are possible.
Several Types of This Product :
- Gestra Non-Return Valve RK 49
- Gestra Non-Return Valve RK 16A
- Gestra Non-Return Valve RK 16C
- Gestra Non-Return Valve RK 26A
- Gestra Non-Return Valve RK 29A
Other Gestra Check Valve Series :
Detail Specification
| Nominal Size | 15 - 100 mm / ½" - 4" |
| Temperature | -200 °C to 550 °C |
| Pressure Rating | PN 10-40, Class 150/300 |
| Body | EN 1.4571/2.4610 , AISI 316 Ti/Hastelloy C |
| Valve Disk | EN 1.4571/2.4610 , AISI 316 Ti/Hastelloy C |
Gestra Non-Return Check Valve RK 16 Type
Gestra Check Valve for Special Applications
The RK 16 series is suitable for liquid, gas, steam and especially aggressive media. Different seal surface designs for tongue or male flanges to DIN or ASME RJ are possible.
Several Types of This Product :
- Gestra Non-Return Valve RK 49
- Gestra Non-Return Valve RK 16A
- Gestra Non-Return Valve RK 16C
- Gestra Non-Return Valve RK 26A
- Gestra Non-Return Valve RK 29A
Other Gestra Check Valve Series :
Detail Specification
| Nominal Size | 15 - 100 mm / ½" - 4" |
| Temperature | -200 °C to 550 °C |
| Pressure Rating | PN 10-40, Class 150/300 |
| Body | EN 1.4571/2.4610 , AISI 316 Ti/Hastelloy C |
| Valve Disk | EN 1.4571/2.4610 , AISI 316 Ti/Hastelloy C |
Gestra Discocheck Dual-Plate Check Valve BB Type
Gestra Check Valve for Industrial Applications
BB dual-plate check valves are wafer-type valves with a short overall length. Their excellent hydrodynamic properties result in very low pressure losses. Their lower weight brings advantages during installation, transport and storage. They are suitable for liquid, gas and steam in heating.
Detail Specification
| Nominal Size | 100 - 500 |
| Nominal Pressure | PN 10 - 40 / Class 150 - 300 |
| Material Design | Grey Cast Iron, Carbon Steel, Stainless Steel |
| Application | Liquids, Gases and Vapours |
GESTRA
DUAL PLATE CHECK VALVE BB SERIES
Gestra Discocheck Dual-Plate Check Valve BB Type
Gestra Check Valve for Industrial Applications
BB dual-plate check valves are wafer-type valves with a short overall length. Their excellent hydrodynamic properties result in very low pressure losses. Their lower weight brings advantages during installation, transport and storage. They are suitable for liquid, gas and steam in heating.
Detail Specification
| Nominal Size | 100 - 500 |
| Nominal Pressure | PN 10 - 40 / Class 150 - 300 |
| Material Design | Grey Cast Iron, Carbon Steel, Stainless Steel |
| Application | Liquids, Gases and Vapours |
Gestra Swing Check Valve 26/26A Type
Gestra Check Valve for Industrial Applications
Gestra swing check valve type WB 26 is used in industrial plants for non-aggressive media such as gas, liquid and steam. The WB 26A is also suitable for aggressive media.
Gestra Check Valve Features :
- Eye bolt for easy installation
- O-ring of NBR for flange sealing
- Short overall length
- For aggressive fluids
Other Gestra Check Valve Series :
Detail Specification
| Nominal Size | 15-100 mm, DN 15 - DN 200, 1/2" - 8" |
| Pressure Rating | PN 40 / Class 300 |
| Material Body EN | 1.4107 |
| Material Valve Disk EN | 1.4571 |
Control Valve

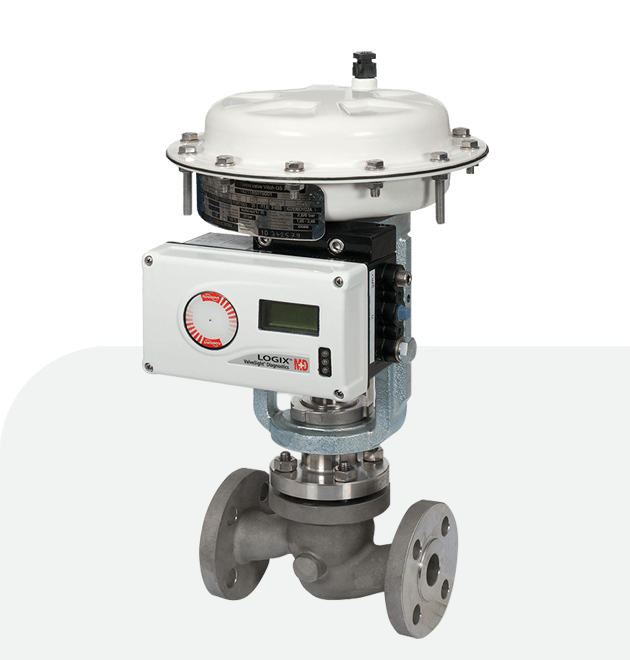

Gestra Control Valve ZK with Radial Stage Nozzle
Gestra Control Valve for Power-Station and Plant Engineering
Gestra control valve of the type ZK have demonstrated their reliability under extreme operating conditions. Long experience and know-how form the sound basis for a generation of efficient and tight-closing control valve.
Several Types of This Product :
Detail Specification
| Nominal Size | DN 25 - DN 150 |
| Nominal Pressure | PN 160, PN 250, PN 630 |
| Pressure Class | Class 900, Class 2500 |
| Actuator | Electric (Rotary, Linear or Lever Actuator), Pneumatic, Handwheel, Hydraulic, |
| Connection | Butt-weld, Socket-weld, Flanged Ends, |
Gestra Control Valve ZK with Radial Stage Nozzle
Gestra Control Valve for Power-Station and Plant Engineering
GESTRA control valves of the type ZK have demonstrated their reliability under extreme operating conditions. Long experience and know-how form the sound basis for a generation of efficient and tight-closing control valve.
Several Types of This Product :
- Gestra Control Valve ZK 29
- Gestra Control Valve ZK 313
- Gestra Control Valve ZK 210
- Gestra Control Valve ZK 213
- Gestra Control Valve ZK 610
- Gestra Control Valve ZK 613
Other Control Valve Series :
- Gestra Control Valve GCV
- Gestra Control Valve SP500
- Gestra Control Valve BW 31
- Gestra Control Valve BW 31A
- Gestra Control Valve CW 41
- Gestra Control Valve CW 44
- Gestra Control Valve CW 44 K
- Gestra Control Valve CW 41/44
- Gestra Control Valve MCW 41
Detail Specification
| Nominal Size | DN 25 - DN 150 |
| Nominal Pressure | PN 160, PN 250, PN 630 |
| Pressure Class | Class 900, Class 2500 |
| Actuator | Electric (Rotary, Linear or Lever Actuator), Pneumatic, Handwheel, Hydraulic, |
| Connection | Butt-weld, Socket-weld, Flanged Ends, |

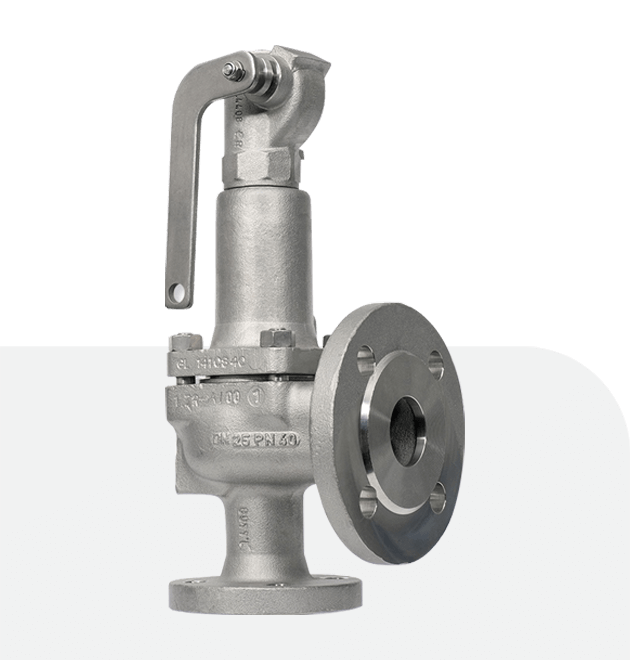

Safety Valve
Gestra Safety Valve
Gestra Safety Valve GSV 441 & GSV 442
Gestra safety valve protect steam systems and tanks from excess pressure. As they are often the last link in the safety chain.
Gestra Safety Valve Size :
- Gestra Safety Valve DN 20
- Gestra Safety Valve DN 25
- Gestra Safety Valve DN 32
- Gestra Safety Valve DN 40
- Gestra Safety Valve DN 50
- Gestra Safety Valve DN 65
- Gestra Safety Valve DN 80
- Gestra Safety Valve DN 100
- Gestra Safety Valve DN 125
- Gestra Safety Valve DN 150
Detail Specification
| Nominal Size | DN 20 - DN 150 (3/4" - 6") |
| Temperature | –270 °C to +450°C |
| Nominal Pressure | PN 16 - 40 |
| Set Pressure | 0.2 - 40.0 |
| Application | For use with steam, liquids, and non-corrosive gases and vapours |
Strainer
Strainer GSF and SZ by GESTRA
Protective Valve for Dirt-Sensitive Equipment
The strainer, which is made of corrosion-resistant stainless steel, functions as a protective valve in all kinds of pipe. In piping systems upstream of equipment that is sensitive to dirt. For liquids, gases, steam and fluids.
Gestra Strainer Design Version :
- SZ: Intermediate flange strainers
- GSF: Y-Seat strainers with flange or socket-type connection
Gestra Strainer Series :
Detail Specification
| Nominal Size | DN 15 - 300, (3/8" - 2") |
| Nominal Pressure | PN 6 - 40 |
| Connection | Flanged |
Strainer GSF and SZ by GESTRA
Protective Valve for Dirt-Sensitive Equipment
The strainer, which is made of corrosion-resistant stainless steel, functions as a protective valve in all kinds of pipe. In piping systems upstream of equipment that is sensitive to dirt. For liquids, gases,
steam and fluids.
Gestra Strainer Design Version :
- SZ: Intermediate flange strainers
- GSF: Y-Seat strainers with flange or socket-type connection
Gestra Strainer Series :
Gestra Strainer GSF Series :
- Gestra Strainer GSF 11
- Gestra Strainer GSF 14
- Gestra Strainer GSF 24
- Gestra Strainer GSF 25
- Gestra Strainer GSF 35
- Gestra Strainer GSF 36
- Gestra Strainer GSF 46A
- Gestra Strainer GSF 335
Detail Specification
| Nominal Size | DN 15 - 300, (3/8" - 2" |
| Nominal Pressure | PN 6 - 40 |
| Connection | Flanged |
Stop Valve
Gestra Stop Valve GAV
In-line Design With
Straight Seat
Straight-through bellows-sealed stop valve with flanges to EN 1092. The valve is designed for shutting off and throttling neutral gases, vapours and liquids in all sectors of industry.
At a Glance :
- Twin ply bellows
- Safety stuffing box
- Non-rising handwheel
- External spindle thread
Several Types of This Product :
- Gestra Bellow Sealed Stop Valve GAV 54F
- Gestra Bellow Sealed Stop Valve GAV 24F
- Gestra Bellow Sealed Stop Valve GAV 25F
- Gestra Bellow Sealed Stop Valve GAV 36F
- Bellow Sealed Stop Valve GAV 46AF
Detail Specification
| Nominal Size | DN 15 - DN 300 |
| Temperature | 20° C / 450° C |
| Nominal Pressure | PN 16, PN 25, PN 40, PN 63, PN 100, PN 160 |
| Material ASTM | A216WCB, A105, A182F1, A217WC6, A182F11 |
| Pressure Rating | Class 150 / Class 300, JIS/KS10 / JIS/KS20 |
Gestra Stop Valve GAV
In-line Design With
Straight Seat
Straight-through bellows-sealed stop valve with flanges to EN 1092. The valve is designed for shutting off and throttling neutral gases, vapours and liquids in all sectors of industry.
Several Types of This Product :
- Gestra Bellow Sealed Stop Valve
GAV 63F-T - Gestra Bellow Sealed Stop Valve
GAV 63F - Gestra Bellow Sealed Stop Valve
GAV 63F-B - Gestra Bellow Sealed Stop Valve
GAV 64F-T - Gestra Bellow Sealed Stop Valve
GAV 64F - Gestra Bellow Sealed Stop Valve
GAV 65F-T - Gestra Bellow Sealed Stop Valve
GAV 65F - Gestra Bellow Sealed Stop Valve
GAV 66F-T - Gestra Bellow Sealed Stop Valve
GAV 66F - Gestra Bellow Sealed Stop Valve
GAV 66F-B - Gestra Bellow Sealed Stop Valve
GAV 66AF-T - Gestra Bellow Sealed Stop Valve
GAV 54F - Gestra Bellow Sealed Stop Valve
GAV 24F - Gestra Bellow Sealed Stop Valve
GAV 25F - Gestra Bellow Sealed Stop Valve
GAV 36F - Gestra Bellow Sealed Stop Valve
GAV 46AF - Gestra Stuffing-box Sealed Stop Valve GAV 126
- Gestra Stuffing-box Sealed Stop Valve GAV 130
- Gestra Stuffing-box Sealed Stop Valve GAV 136
- Gestra Stuffing-box Sealed Stop Valve GAV 136SE
Detail Specification
| Nominal Size | DN 15 - DN 300 |
| Temperature | 20° C / 450° C |
| Nominal Pressure | PN 16, PN 25, PN 40, PN 63, PN 100, PN 160 |
| Material ASTM | A216WCB, A105, A182F1, A217WC6, A182F11 |
| Pressure Rating | Class 150 / Class 300, JIS/KS10 / JIS/KS20 |
Blowdown Valve
Gestra Blowdown Valve
Gestra Steam Systems PA Series Blowdown Valve
The blowdown valve type MPA are provided with a diaphragm actuator suitable for compressed air or pressurized water and a rapid-closing mechanism.
Gestra Blowdown Valve Features :
- Separate pretensioning
- Wear-protection by downstream, integrated radial assembly level cone
- Rapid-Action Intermittent Blowdown Valve MPA 46 with diaphragm actuator
Blowdown Valve Other Series :
- Gestra Blowdown Valve MPA 46 Series
- Gestra Blowdown Valve MPA 47 Series
- Gestra Blowdown Valve MPA 48 Series
- Gestra Blowdown Valve MPA 110 Series
Detail Specification
| Nominal Size | DN 20, DN 25, DN 32, DN 40, DN 50 |
| Nominal Pressure | PN 10, PN 16, PN 25, PN 40, Class 150, Class 300 |
| Pressure Rating | ANSI Class 150 up to 600 |
| End Connections | Flanges acc. to DIN and ANSI / socket weld ends / weld-on end |
| Material Body | P240GH (C22.8) |
| Material Internals | Stainless Steel |
Gestra Blowdown Valve
Gestra Steam Systems PA Series Blowdown Valve
The blowdown valve type MPA are provided with a diaphragm actuator suitable for compressed air or pressurized water and a rapid-closing mechanism.
Gestra Blowdown Valve Features :
- Separate pretensioning
- Wear-protection by downstream, integrated radial assembly level cone
- Rapid-Action Intermittent Blowdown Valve MPA 46 with diaphragm actuator
Blowdown Valve Other Series :
- Gestra Blowdown Valve MPA 46 Series
- Gestra Blowdown Valve MPA 47 Series
- Gestra Blowdown Valve MPA 48 Series
- Gestra Blowdown Valve MPA 110
Detail Specification
| Nominal Size | DN 20, DN 25, DN 32, DN 40, DN 50 |
| Nominal Pressure | PN 10, PN 16, PN 25, PN 40, Class 150, Class 300 |
| Pressure Rating | ANSI Class 150 up to 600 |
| End Connections | Flanges acc. to DIN and ANSI / socket weld ends / weld-on end |
| Material Body | P240GH (C22.8) |
| Material Internals | Stainless Steel |
Gestra Blowdown Valve
Gestra Continuous Blowdown Valve BA Series
Automatically controlled continuous blowdown to reduce blowdown wastage with a Gestra conductivity electrode and the continuous blowdown controller.
Gestra Blowdown Valve Features :
- High Blowdown Capacity
- Automation of desalination made easy
- Combination with conductivity probe LRG
- Enables operation of boilers without constant supervision
Blowdown Valve Other Series :
Detail Specification
| Size Range | DN 15 up to DN 40 |
| Size Range | 1⁄2 inch - 2 inch |
| Pressure Rating | Class 150 up to 300 |
| End Connection | Flanges, Socket-Weld Ends, Butt-weld Ends |
Gestra Blowdown Valve
Gestra Continuous Blowdown Valve BA Series
Automatically controlled continuous blowdown to reduce blowdown wastage with a Gestra conductivity electrode and the continuous blowdown controller.
Gestra Blowdown Valve Features :
- High Blowdown Capacity
- Automation of desalination made easy
- Combination with conductivity
probe LRG - Enables operation of boilers without constant supervision
Blowdown Valve Other Series :
Detail Specification
| Size Range | DN 15 up to DN 40 |
| Size Range | 1⁄2 inch - 2 inch |
| Pressure Rating | Class 150 up to 300 |
| End Connection | Flanges, Socket-Weld Ends, Butt-weld Ends |
Gestra Blowdown Valve
Gestra Rapid-Action Intermittent Blowdown Valve
Blowdown valve PA 47 – manual operation Hand lever with clip fastener Separate pre-tensioning Wear protection by downstream, integrated radial assembly level cone Tell-tale hole inside the protection pipe Leakage control. The equipment may only be used within the admissible pressure and temperature limits
Purpose :
The equipment is designed for the manual or automatic discharge of boiler blowdown water with non-metallic solids from steam boilers.
Blowdown Valve Other Series :
Detail Specification
| Size Range | 1" - 2" |
| Sealing Plug | ASTM: SA 193 B7 |
| Class Rating | PN 40/ PN 63/ Class 300 |
| Body Material | WCB |
| End Connection | RF Flanged End |
Gestra Blowdown Valve
Gestra Rapid-Action Intermittent Blowdown Valve
Rapid action intermittent blowdown valve PA 47 – manual operation Hand lever with clip fastener Separate pre-tensioning Wear protection by downstream, integrated radial assembly level cone Tell-tale hole inside the protection pipe Leakage control.
Purpose :
The equipment is designed for the manual or automatic discharge of boiler blowdown water with non-metallic solids from
steam boilers.
Blowdown Valve Other Series :
Detail Specification
| Size Range | 1" - 2" |
| Sealing Plug | ASTM: SA 193 B7 |
| Class Rating | PN 40/ PN 63/ Class 300 |
| Body Material | WCB |
| End Connection | RF Flanged End |
Gestra Blowdown Valve
Gestra Programme-Controlled Blowdown System TA7
Electronic unit for the generation of periodic pulses to initiate a blowdown cycle via the GESTRA rapid-action intermittent blowdown valve type MPA 46 or 47, i.e. automation of intermittent boiler blowdown. Equipment for steam boilers to TRD 401, section 6.4.
Gestra Blowdown Valve Features :
- Type TA7 with cycling timer type PRS 8
- Type TA7 with three-way solenoid valve type 340 C and strainer
Gestra Type TA7 with indicators and adjusters: 2 switches for time toff/ton 1 code switch with 8 poles for changing the function 1 LED mains supply 1 LED pulse duration Supply voltage: 110-230 VAC, 50-60 Hz. Protection: IP 65
Detail Specification
| Duty Cycle | 100% |
| Max. Service Pressure | 16 barg (230 psig) |
| Material Strainer | Body: gun metal RG 5, Filter cartridge: austenitic stainless steel 1.4571 |
| Connection | 1⁄4", EN ISO 228-1 & 1⁄2", EN ISO 228-1 |
